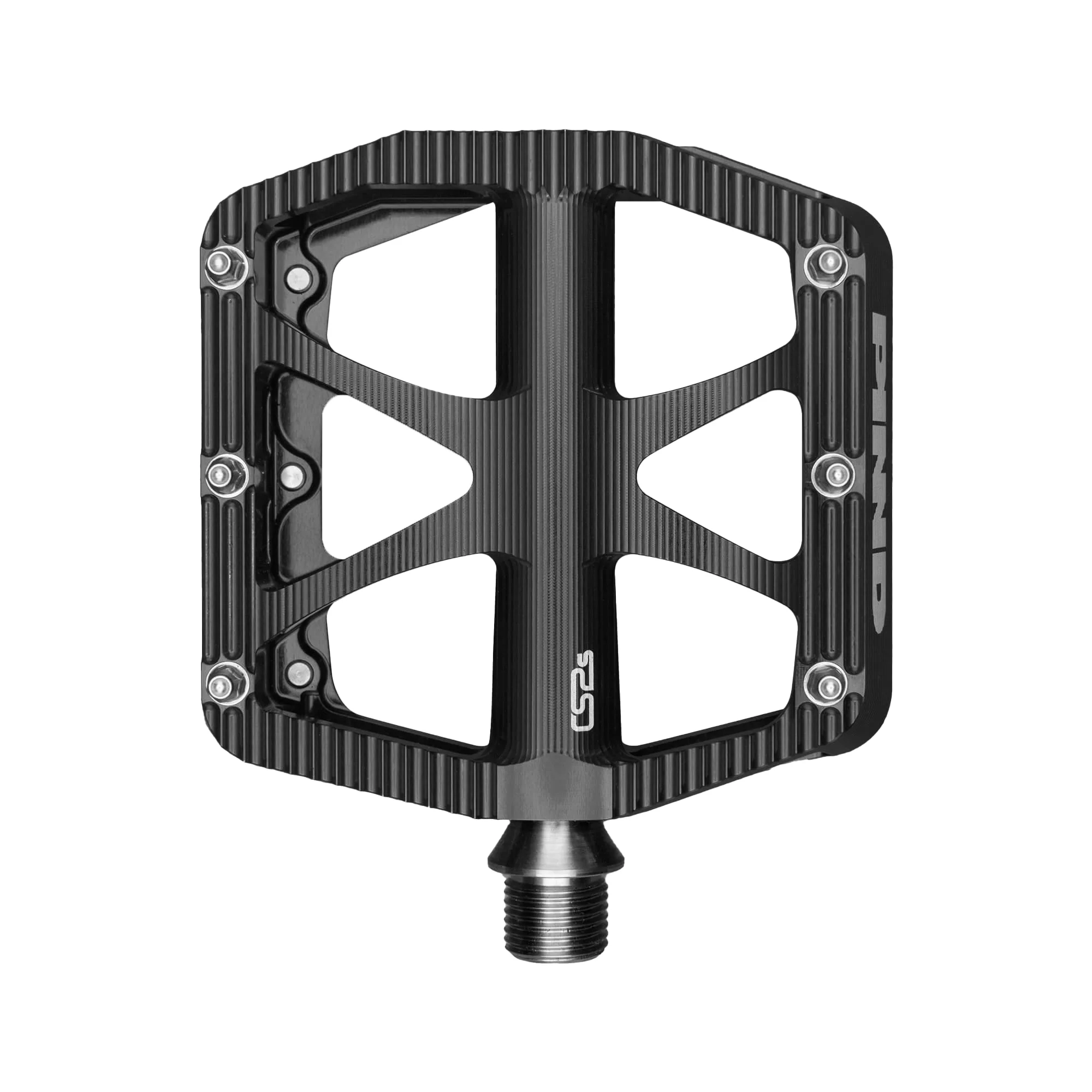

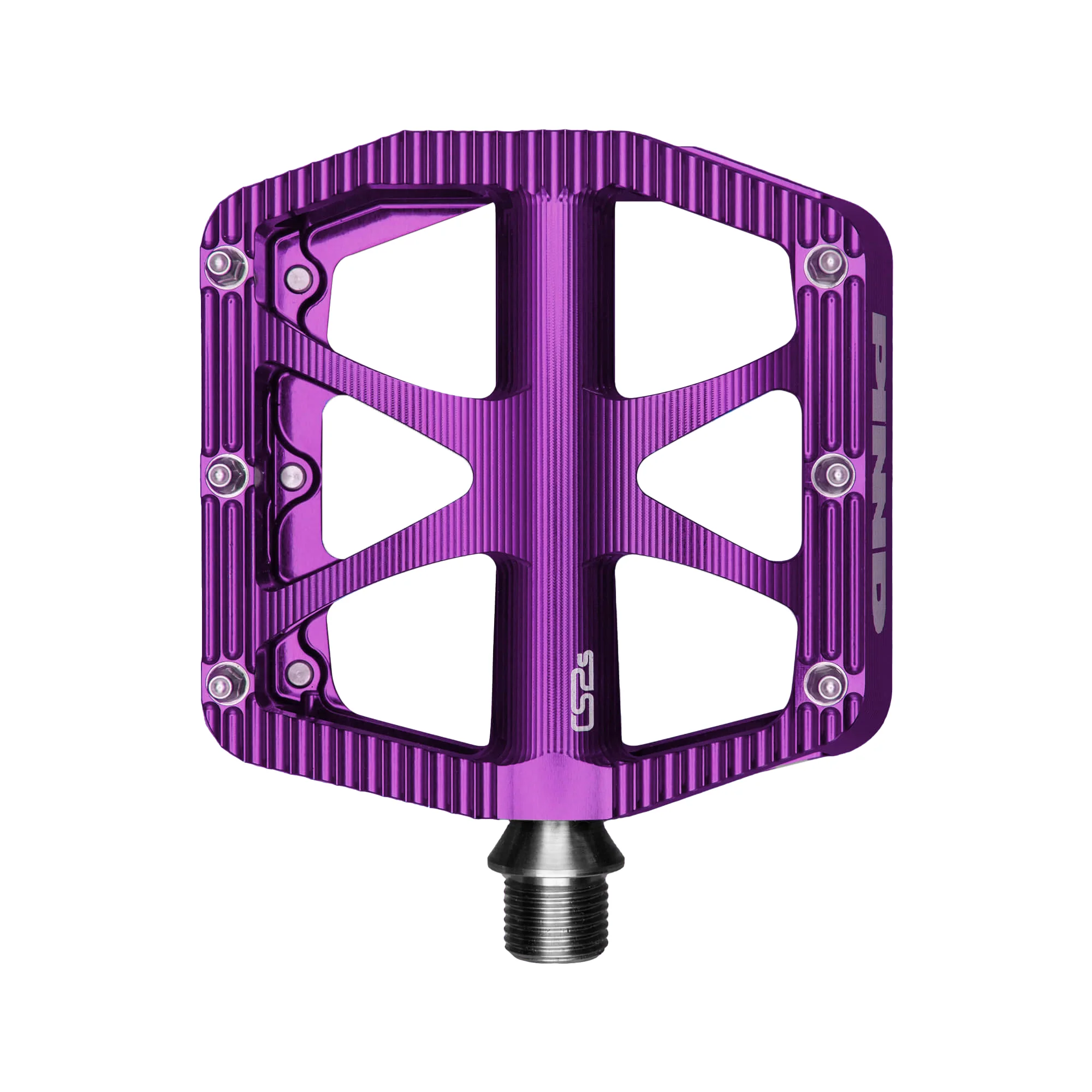

CS2s SS Small Pedals

A smaller version of the standard PINND CS2 pedal,, optimised around a UK size 6 shoe. (US size 7/ EU size 39)

Precision engineered pedals built to withstand Scottish winter riding conditions like no other pedals! PINND CS2s pedals feature 2 sealed cartridge bearings per pedal, along with a needle roller bearing, where other pedals normally have a plastic bush. The needle bearing doesn't allow the same movement as a worn plastic bushing, preventing the seal becoming compromised.

On top of the needle bearing design, PINND pedals feature a high quality oil seal, prolonging the need for servicing and intervals and improving performance.,

The CS2 pedal is designed for downhill, enduro, and trail mountain bike riding and offers a large contact platform with a 9 mm concave profile and fully adjustable pin set. Pedals are shipped with 18 pins installed, allowing you to customise with an additional 8 provided. The 7075 T6 aluminium body has been CNC machined on 5-axis tooling, allowing PINND to fully optimise the pedal for a high traction connection between pedal and shoe.

• Designed and precision engineered in Scotland to withstand the toughest trails and conditions.
• Smaller size optimised around a 6UK/7US7/39EU shoe.
• Oil sealed internals bearings.
• Grade 17-4PH stainless steel axles inside anodised 7075 T6 platforms.
• 6 pins per side, replacement pins for customisation are available.
• 5-year warranty (doesn't cover wear and tear).
• 12 pins per pedal. Ships with 303 stainless steel as standard.
• 1 x HK1015 needle bearing and 2 x cartridge bearings
• Unlimited max rider weight
• Footprint: 86.36×90 mm
• Height: 19.50 mm, 27.50 mm with lower profile pins, 29.50 with longer pins.
• 5 Years Limited Warranty (excludes wear and tear) and half price crash replacement
• Weight (pair): 464g with Stainless Steel Pins
